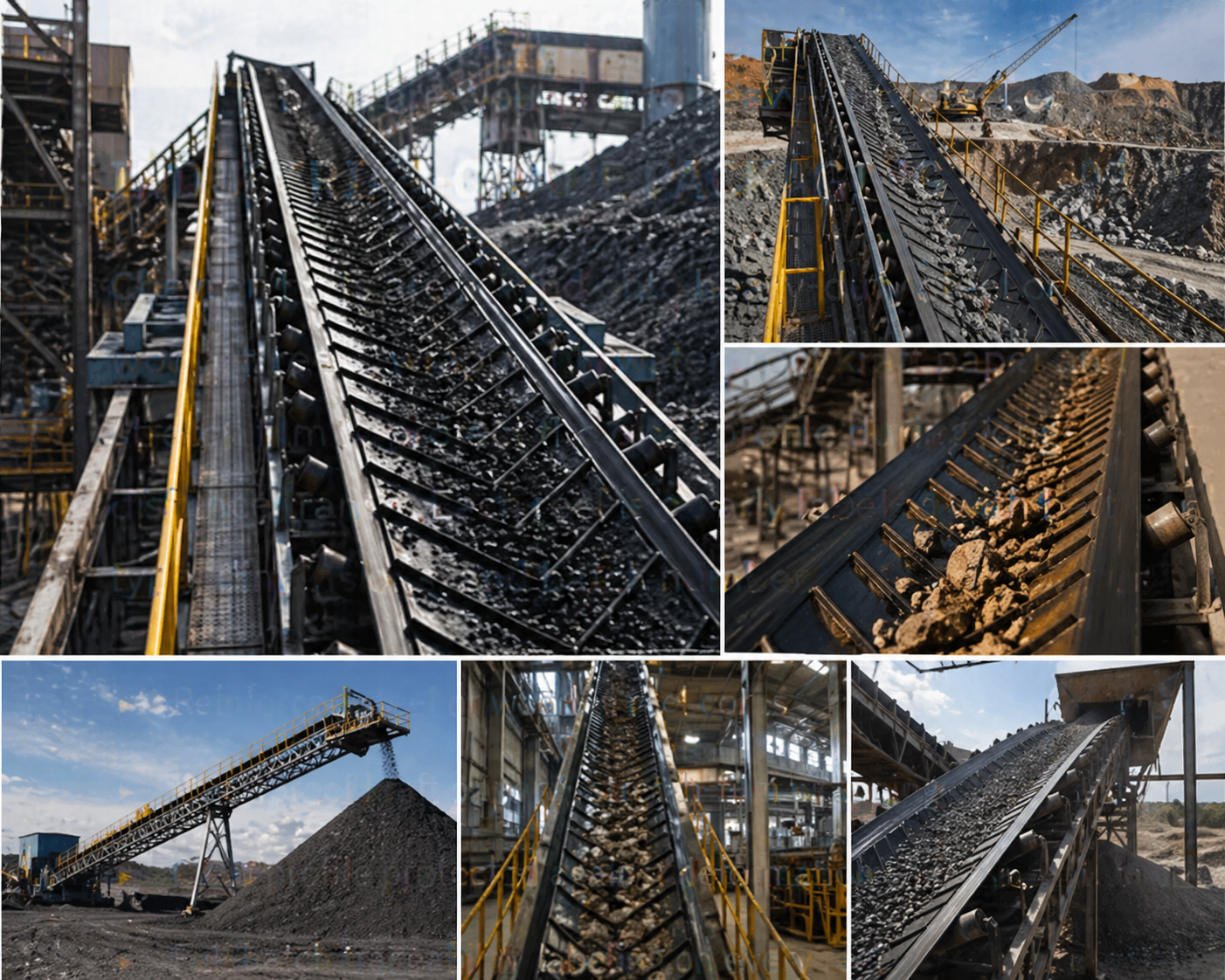

With over 50 proprietary pattern molds, our Chevron Conveyor Belts deliver unmatched grip and carrying capacity on steep inclines up to 40°. Built for coal mines, ports, steel mills, and cement plants — engineered where performance cannot be compromised.

50+ Pattern Molds
40° Max Incline
1.2–32 Profile Height mm
300+ Width Range mm
View Specifications Request a Quote
Patterns & Specifications

Chevron Belt Pattern Library

Every pattern is precision-engineered for your incline angle, material type, and throughput requirement. From shallow 5 mm profiles to heavy-duty 32 mm cleats — 50 certified mold designs, each with its own technical specification. Custom mold design available on request.

C5 V C5
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
5 300~1200 100 300~1200

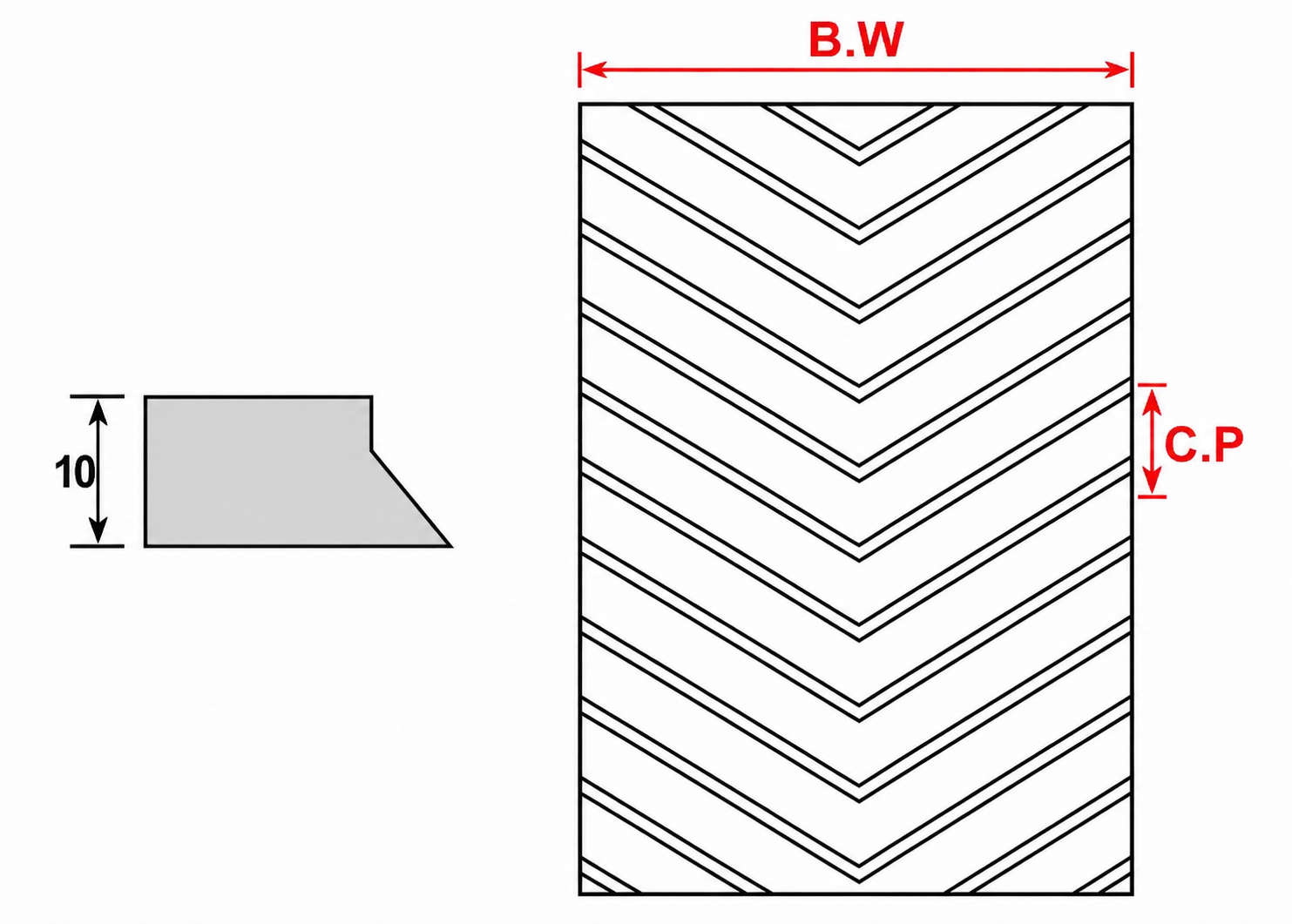

C10 V C10
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
10 300~1200 100 300~1200
Multi V Multi V
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
6.35 600~1400 76 600~1400
C15 V330 C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 330 250 400~1000
C15 V450 C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 450 300 500~1000
C15 P385 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 385 250 450~1000
C15 P450 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 450 250 650~1000
C15 P600 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 600 250 650~1000
C15 P750 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 750 250 800~1200
C15 P330 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 330 200 450~1000
C15 P420 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 420 200 650~1000
C15 P520 Open V C15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 520 200 650~1000
C17 P300 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 300 330 400~1000
C17 P440 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 440 330 500~1000
C17 P550 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 550 330 600~1000
C17 P630 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 630 330 700~1000
C17 P750 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 750 330 850~1200
C17 P950 C17
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
17 950 330 1050~1400
C25 P450 Closed U C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 450 330 500~1000
C25 P550 Closed U C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 550 330 600~1000
C25 P750 Closed U C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 750 330 800~1200
C25 P540 C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 540 250 600~1000
C25 P840 C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 840 245 1000~1400
C25 P990 C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 990 330 1000~1450
C25 P1000 C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1000 400 1200~1450

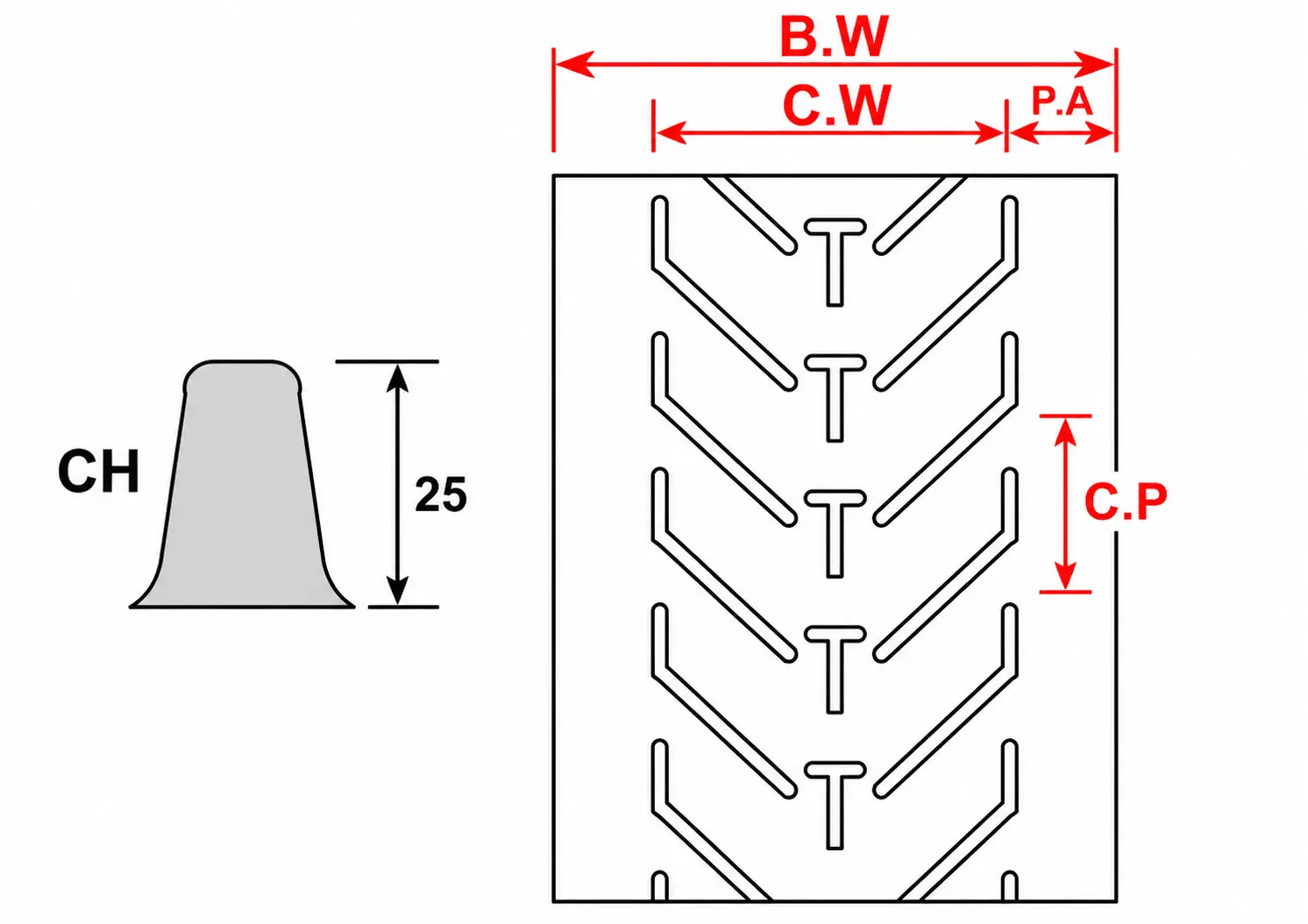

C25 AH1120 C25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1120 250 1200~1450
C31.5 P590 C31.5
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
31.5 590 330 700~1350

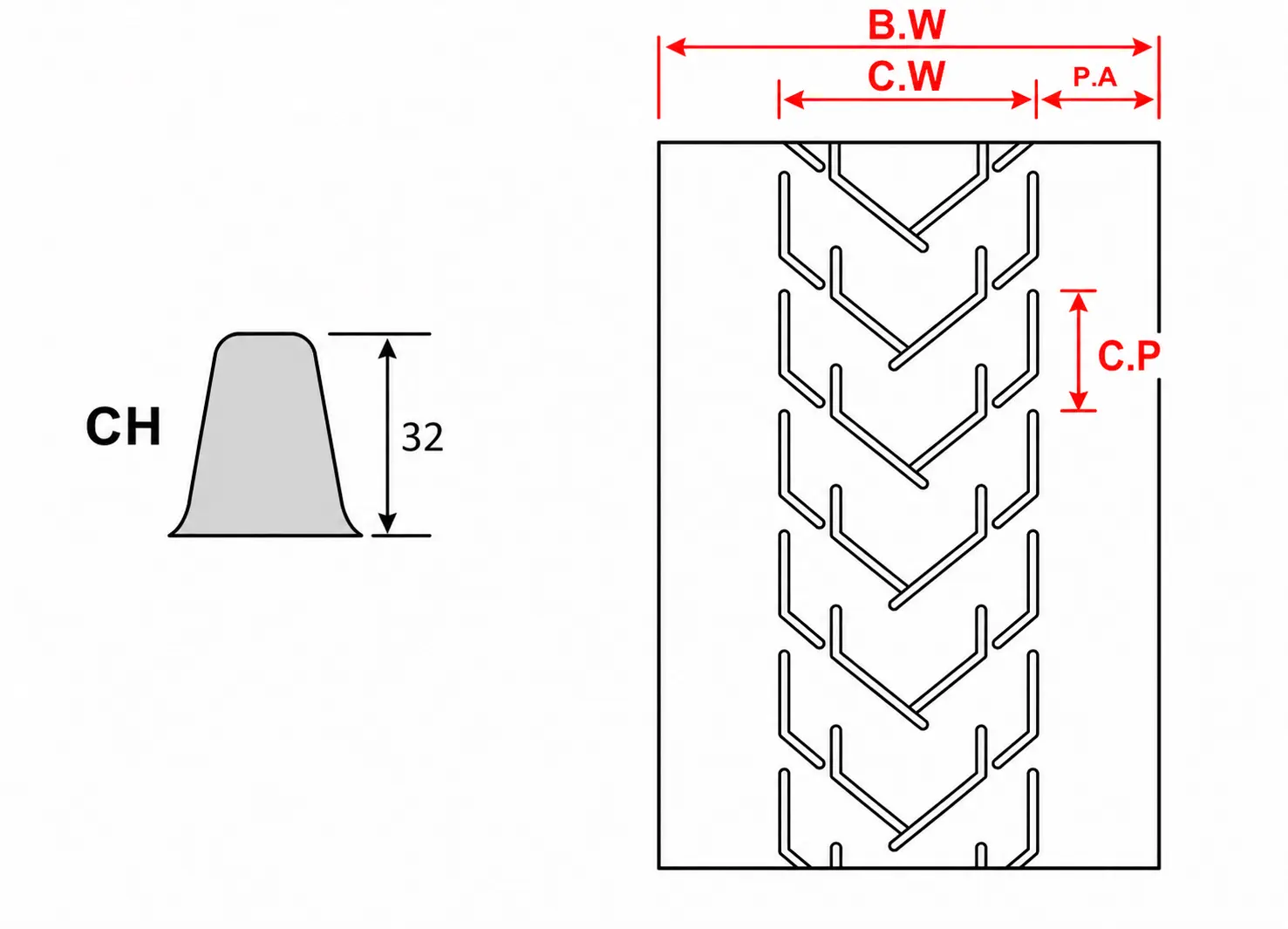

C32 P460 C32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 460 330 550~1000
C32 P580 C32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 580 330 700~1000
C32 P630 C32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 630 330 750~1000
C32 P750 C32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 750 330 850~1400
C32 P1000 C32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 1000 330 1200~1450
CB15 P890 CB15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 890 190 1000~1450
CB15 P980 CB15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 980 190 1100~1450
CB15 P1050 CB15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 1050 190 1200~1450
CB15 P1290 CB15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 1290 190 1400~1450
CB25 P1180 CB25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1180 400 1400~1500
CB25 P1365-A CB25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1365 400 1400~1500
CB25 P1350 CB25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1350 500 1400~1500
CB25 P1365-B CB25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1365 500 1400~1500
CB25 P1400 CB25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1400 500 1400~1500
S15 P500 S15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 500 230 600~1100
S15 P650 S15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 650 230 700~1100
S15 P800 S15
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
15 800 300 850~1100
S25 P750 S25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 750 340 900~1400
S25 P1000 S25
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
25 1000 350 1100~1400
Y32 P450 Y32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 450 300 550~1000
Y32 P600 Y32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 600 356 700~1000
Y32 P800 Y32
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
32 800 490 900~1200
Herringbone HB
C.H(mm) C.W(mm) C.P(mm) B.W(mm)
1.2 1610 5 700~1500
Product Demonstration
Click to Play
Chevron Conveyor Belt — Pattern & Performance Overview JOYTRANS

Can't find your ideal pattern?
We offer full custom mold design service. Share your application requirements and our engineers will propose the optimum chevron profile for your operation.

Request Custom Design Download Full Catalogue

* The pattern is for reference only. Actual dimensions are subject to the official mold drawing.

Packaging & Delivery

Secure Packaging
& Global Delivery

Every meter of belt that leaves our facility is treated as a precision asset. From reinforced reel packaging to door-to-door logistics coordination, we guarantee your order arrives in production-ready condition — on time, anywhere in the world.

01

Industrial-Grade Packaging

Chevron belts are wound onto heavy-duty steel or wooden reels, wrapped in waterproof kraft paper and stretch film to protect the cleat profile during long-distance transit. Each reel is clearly labeled with belt type, dimensions, and batch number.

  • Reinforced steel or wooden reel cores
  • Waterproof kraft paper & stretch-film wrapping
  • Cleat profile protected against deformation
  • Full batch traceability labeling on every reel
02

Worldwide Logistics Network

Direct partnerships with major ocean freight carriers and a dedicated export team let us coordinate sea, air, and road shipments to over 80 countries. Container loading is supervised by our QC team to eliminate transit damage before it starts.

  • Sea, air & multimodal transport options
  • Delivery to 80+ countries worldwide
  • Supervised container loading & blocking
  • Real-time shipment tracking provided
03

Pre-Shipment Quality Guarantee

No order ships without our full pre-shipment inspection: dimensional verification of C.H, C.W, C.P, and B.W; adhesion strength testing; and a final visual check of every running meter. Test reports and certificates of conformance included.

  • Dimensional check: C.H · C.W · C.P · B.W
  • Adhesion & tensile strength test reports
  • ISO & GB standard compliant certificates
  • Full photographic shipping record provided
