Steel Cord Conveyor Belt
GB/T 9770-2013 Certified · Breaker Layer Protected · Factory Direct
JOYTRANS · Ripstop Series

Ripstop Steel Cord
Conveyor Belt

Maximum Tear Resistance for Heavy Impact Conditions

Designed for mining, ports, and heavy-duty bulk handling systems where sharp materials, high drop heights, and sudden impact events demand more than a standard belt can deliver. The Ripstop series integrates a dedicated breaker layer to stop tear propagation before it becomes a catastrophic failure.

30–50%
Longer Life
ST-5000
Max Rating
6
Layer Structure
FR/AS
Option
Get Factory Quote View Specifications
Core Advantages

Why Choose Ripstop?

Every industrial conveyor belt tears eventually — but not all belts are built to stop a tear from becoming a total loss. The Ripstop structure adds a critical line of defense that standard steel cord belts simply do not have.

Breaker layer protection prevents catastrophic belt failure — a single tear in a standard belt can propagate across the full width in minutes, costing days of unplanned downtime. The Ripstop breaker layer stops it at the source.
Tear Resistance
Steel or textile breaker layers inserted in the top and/or bottom cover intercept and arrest longitudinal tears before they can propagate — regardless of the size or sharpness of the impacting material. The belt stays whole where standard belts split.
Stops tears at the source
Impact Protection
The breaker layer acts as a secondary armour beneath the cover rubber, distributing high-energy point loads across a wider area before they reach the steel cord carcass. This dramatically reduces cord damage and cover puncture at loading points.
Protects carcass at loading zones
Longer Service Life
By preventing the micro-tears and edge damage that accumulate into major belt failures, the Ripstop structure extends operational service life by 30–50% in comparable impact environments — directly reducing annualised belt replacement capital expenditure.
30–50% longer lifespan
Reduced Maintenance Cost
Fewer emergency belt repairs, fewer unplanned shutdowns, and longer intervals between scheduled maintenance events. Every avoided downtime event saves not just belt cost but also production loss, labour, and the knock-on costs of delayed throughput.
Lower cost per tonne conveyed

See how the Ripstop belt has performed in operations like yours. Our engineers will walk you through real-world case data and a cost comparison against your current belt.

Talk to an Engineer
Product Structure

Six-Layer Ripstop Architecture

Every layer is engineered with a specific purpose. The breaker layer — unique to the Ripstop series — is what separates this belt from every standard steel cord design on the market.

Ripstop Series — Six-Layer Cross-Section
1
Top Cover
High-abrasion rubber compound. Primary wear surface formulated to resist impact, abrasion, and weather exposure across the full belt width.
2
Breaker Layer (Top)
Steel or textile mesh inserted directly beneath the top cover. Intercepts and arrests tear propagation — the defining feature of the Ripstop series.
KEY LAYER
3
Skim Rubber & Steel Cord Carcass
High-tensile galvanized steel cords embedded in bonding rubber at precise pitch. Provides the tensile strength and structural backbone of the belt.
4
Breaker Layer (Bottom)
Optional second breaker layer beneath the carcass for applications with severe underside impact — provides dual-direction tear arrest capability.
OPTIONAL
5
Bottom Cover
Abrasion-resistant compound protects against idler and return roller wear. Formulated to match the top cover durability specification.
6
Edge Rubber
Seals all cord ends and breaker layer edges against moisture and mechanical damage, maintaining structural integrity across the full belt cross-section.
Reinforced with steel or textile breaker layers to prevent longitudinal tearing — the Ripstop architecture is the industry benchmark for impact-zone conveyor protection.

Need a custom breaker specification — steel mesh grade, layer placement, or compound formulation? Our engineers design to your application requirements.

Request Custom Configuration
Application Scenarios

Built for High-Impact Industries

Wherever sharp materials, high drop heights, or sudden impact events put standard belts at risk, the Ripstop series provides the margin of safety that keeps operations running.

Mining conveyor application
01 · Mining
Mining
High-impact material loading zones where sharp rock and ore fragments demand maximum tear arrest capability at every transfer point.
Port terminal bulk handling
02 · Port
Port & Terminal
Ship unloading and bulk terminal applications where grab-crane discharge causes sudden, concentrated impact loads on the belt surface.
Cement plant conveyor
03 · Cement
Cement Plant
Limestone and clinker transport systems where angular, abrasive material at high throughput rates accelerates belt degradation and cover tearing.
Power plant coal conveyor
04 · Power
Power Plant
Long-distance coal feed conveyors where belt failure at any point in the system causes full-plant generation curtailment and significant revenue loss.
Steel industry conveyor
05 · Steel
Steel Industry
Iron ore, scrap, and sinter transport in integrated steel works where the combination of sharp material and high impact energy is most severe.

Tell us your application, material type, and impact conditions — we'll recommend the optimal Ripstop specification for your operation.

Discuss My Application
RIPSTOP
Problem → Solution

The Real Cost of Belt Failure

The Problem with Standard Belts
!
Belt Tearing from Sharp Materials
A single sharp rock or piece of metal at the loading zone can initiate a longitudinal tear that propagates across the full belt width in under a minute — taking an entire conveyor system offline.
!
High Unplanned Downtime Cost
Emergency belt failure repairs require crane access, vulcanising equipment, and specialist labour — often requiring 24–72 hours of full system downtime that costs far more than the belt itself.
!
Frequent Belt Replacement
Repeated impact events progressively weaken the cover and carcass even when full tears are avoided — leading to accelerated replacement cycles that inflate annual maintenance budgets and spare-belt inventory costs.
The Ripstop Solution
Ripstop Structure Prevents Tear Propagation
The integrated breaker layer intercepts any tear at the point of initiation and prevents it from running further. A puncture stays a puncture — it never becomes a catastrophic split that brings the operation down.
Extends Belt Lifetime by 30–50%
By protecting the carcass from cumulative impact damage, the Ripstop belt consistently delivers 30–50% longer service life in high-impact operations — translating directly to lower annualised belt cost and reduced inventory burden.
+30–50%
 longer belt life
Dramatically Lower Maintenance & Downtime Cost
Fewer emergency repairs, fewer replacement events, and longer scheduled maintenance intervals — the Ripstop belt pays for its premium within the first avoided breakdown event in most high-impact applications.

Let us model the total cost of ownership for your current belt vs. the Ripstop. Most customers recover the price premium within one avoided downtime event.

Get Your Cost Comparison
Technical Data

Technical Specifications

Implementation Standard GB/T 9770-2013 《General Use Steel Cord Conveyor Belt》
Breaker Mesh Technical Parameters
ST Value
warp/strength (N/mm) 		Strength
(N/mm)		 Weight of Mesh
(kg/m²)		 Thickness
of Mesh (mm)		 Diameter
(mm)		 Weft Cord
Tearing Strength
(N)		 Break Elongation Pitch (mm)
≤ 1000 125 0.61 1.85 1.23 1050 > 5% 8.2
1250–1600 150 0.73 1.85 1.23 1050 > 5% 6.8
2000–2500 200 0.96 1.99 1.37 1325 > 5% 6.4
3150–3500 250 1.20 1.99 1.37 1325 > 5% 5.1
4000–4500 300 1.32 2.14 1.52 1720 > 5% 5.5
≥ 5000 400 1.71 2.14 1.52 1720 > 5% 4.2
≥ 5000 500 2.22 2.64 2.02 2900 > 5% 5.6
≥ 5000 650 2.81 2.64 2.02 2900 > 5% 4.4

Need a specific warp strength, mesh weight, or custom breaker specification? Our technical team will configure the optimal Ripstop specification within 24 hours.

Request a Quote Now Download Technical Data Sheet
Standards & Certification

Certified to International Standards

Every Ripstop belt shipped from JOYTRANS is manufactured and verified against internationally recognised quality and safety standards — backed by documented test reports on request.

GB/T 9770
-2013 · General Use Steel Cord Conveyor Belt
ISO 9001
Quality Management System
ISO 14001
Environmental Management System
OHSAS 18001
Occupational Health & Safety
Fully compliant with international heavy-duty conveyor standards — test reports, certificates of conformance, and material traceability documentation available with every order.

Require specific certification documentation for your procurement process? We can provide the full compliance package before you place the order.

Request Certification Package
Factory Strength

The Manufacturing Advantage

JOYTRANS is not a trading company — we are a purpose-built conveyor belt manufacturer with the capacity, technology, and quality infrastructure to supply at any scale, with consistent batch-to-batch quality.

100,000㎡
Factory Floor Area
40M m²
Annual Production Output
40+
Export Countries
Large-Scale Production Capacity
100,000 ㎡ factory with dedicated Ripstop production lines featuring precision breaker layer integration equipment. 40 million ㎡ annual capacity ensures we can fulfil any order volume with confirmed lead times.
40M m² / year
Verified Quality at Every Batch
Full pre-shipment inspection covering breaker layer adhesion, mesh weight, tensile strength, and dimensional accuracy. No belt ships without documented QC results — test reports included with every order.
ISO 9001 Verified
Global Export Experience
Exporting to 40+ countries across Asia, Africa, Europe, and the Americas. Dedicated export team handles documentation, container loading, and freight coordination — factory to your port, without complications.
40+ Countries
Factory-Direct Pricing · Stable Quality · No Middlemen

Ready to experience the JOYTRANS factory difference? Request a quote and receive confirmed pricing, lead time, and factory specifications within 24 hours.

Get Factory Direct Quote
Packaging & Delivery

Secure Packaging & On-Time Delivery

A belt that arrives damaged or late is a belt that failed before it even started. Every Ripstop order is packaged to survive ocean transit and delivered on the schedule you need.

01

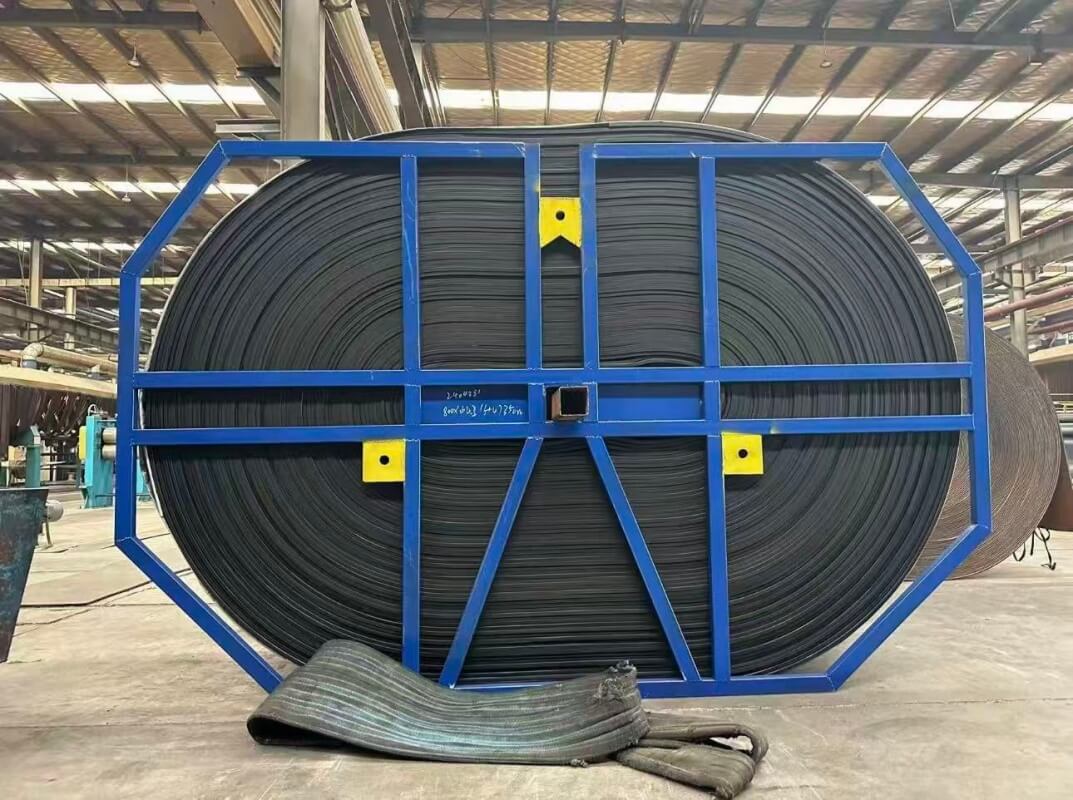

Steel Rack Packaging

Ripstop belts are wound onto heavy-duty steel racks with reinforced end caps, then wrapped in waterproof kraft paper and stretch film. The breaker layer and belt edges are protected against deformation throughout transit — no compression, no profile damage.

  • Reinforced steel rack cores — no reel deformation
  • Waterproof kraft paper & stretch-film outer wrap
  • Edge and breaker layer fully protected
  • Batch traceability label on every reel
02 Quality inspection measuring rubber conveyor belt thickness with digital caliper for industrial conveyor belt production

Supervised Container Loading

Every container is loaded and secured under QC supervision. Reel positions are braced with wooden chocks and steel lashing to eliminate shifting during ocean transit. Full photographic loading records are provided with every shipment document set.

  • QC-supervised container stuffing
  • Wooden chocks & steel lashing — zero movement
  • Photographic loading records included
  • Export packing list & B/L coordination

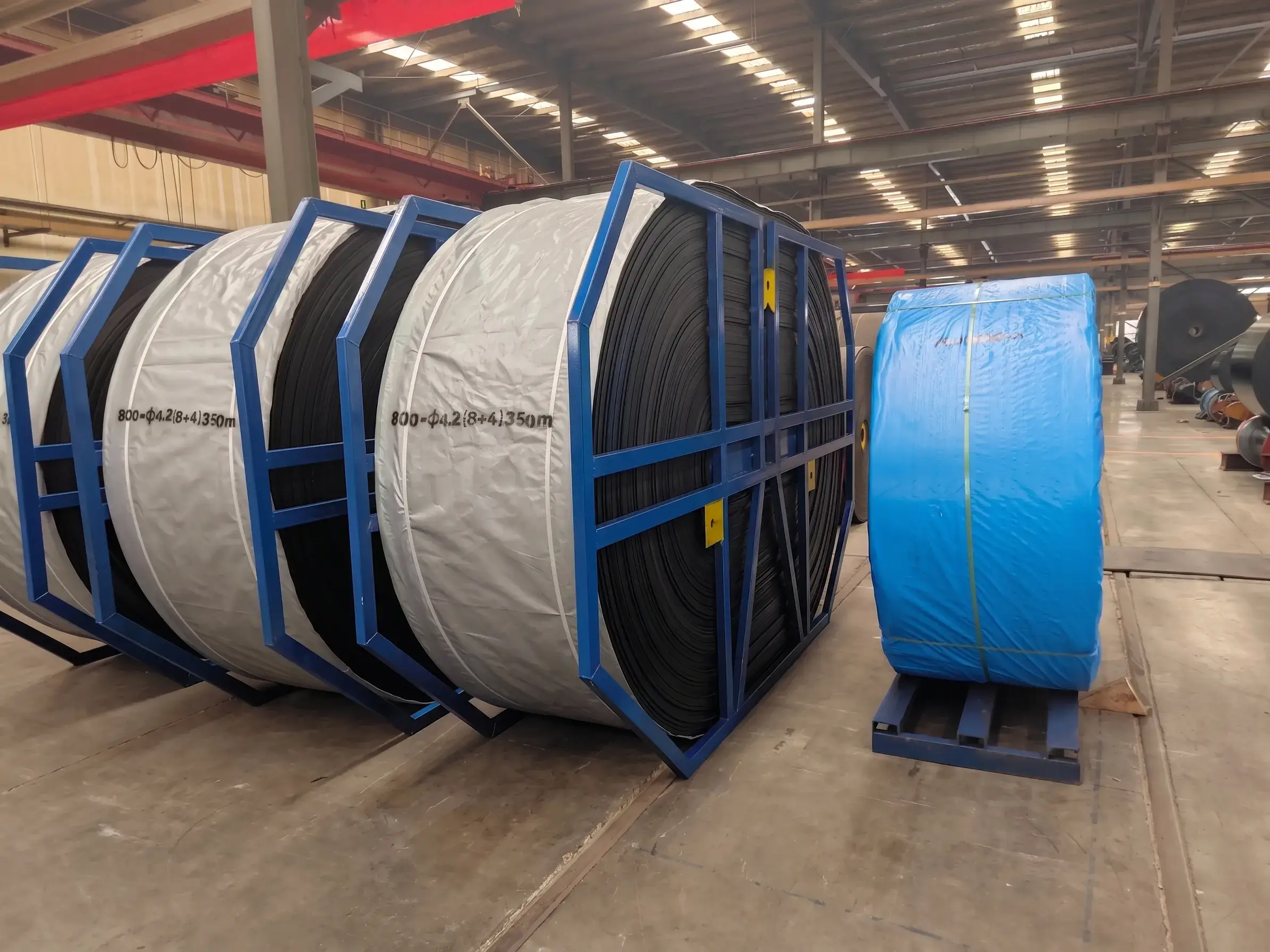

03 Heavy duty rubber conveyor belt rolls packed on steel reels in factory ready for export shipment

Delivery Time: 15–30 Days

Standard Ripstop specifications ship within 15–30 days from order confirmation. Custom breaker configurations and non-standard widths are quoted with confirmed lead times at the time of order — no surprises, no delays that are not communicated in advance.

  • Stock specs: 15–20 days production + transit
  • Custom specs: confirmed lead time at order
  • Sea freight to any major global port
  • Real-time shipment tracking provided
24h
Quote Response
Confirmed pricing & lead time within 24 hours of enquiry
15–20
Days Production
Standard Ripstop specifications in full production
30
Days Total Delivery
Production + ocean freight to your destination port

Tell us your port of discharge, required quantity, and target delivery date — we'll confirm production capacity and a shipping schedule within 24 hours.
